Ілюстративне зображення
Технічна документація
Сертифікат
EAN код8595568942319
Митний код85369010
Вага1,7801 kg/шт
Тест з розпеченим дротом650 °C
Механічний захистIK07
Ширина190 mm
Висота203 mm
Глибина75 mm
Функціональність при пожежіP90-R, E90, PS90
Ступінь захистуIP40
Стандарти вогнестійкостіČSN 73 0895, DIN 4102-12, STN 92 0205

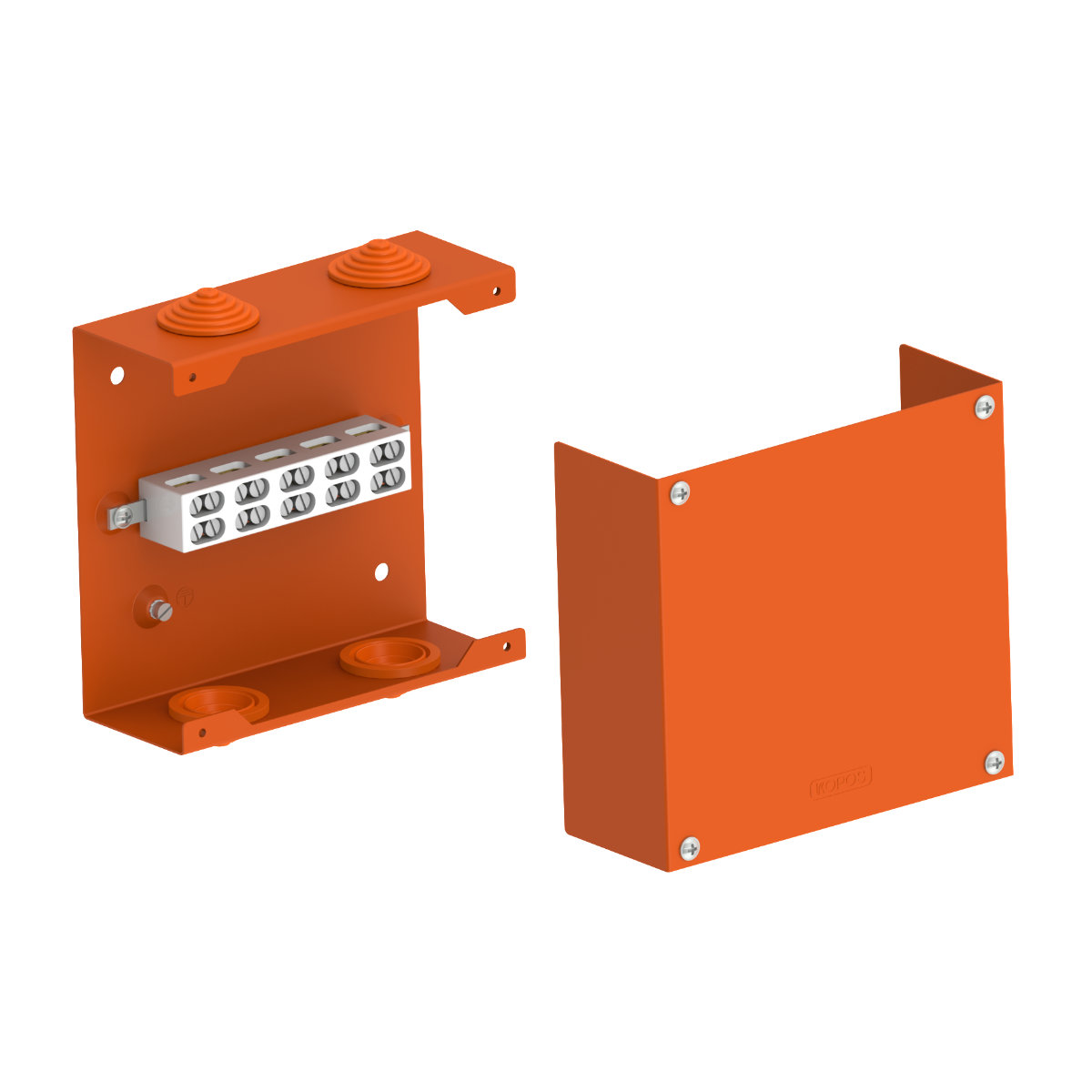

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with power cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).

В даний момент продукції немає в наявності
